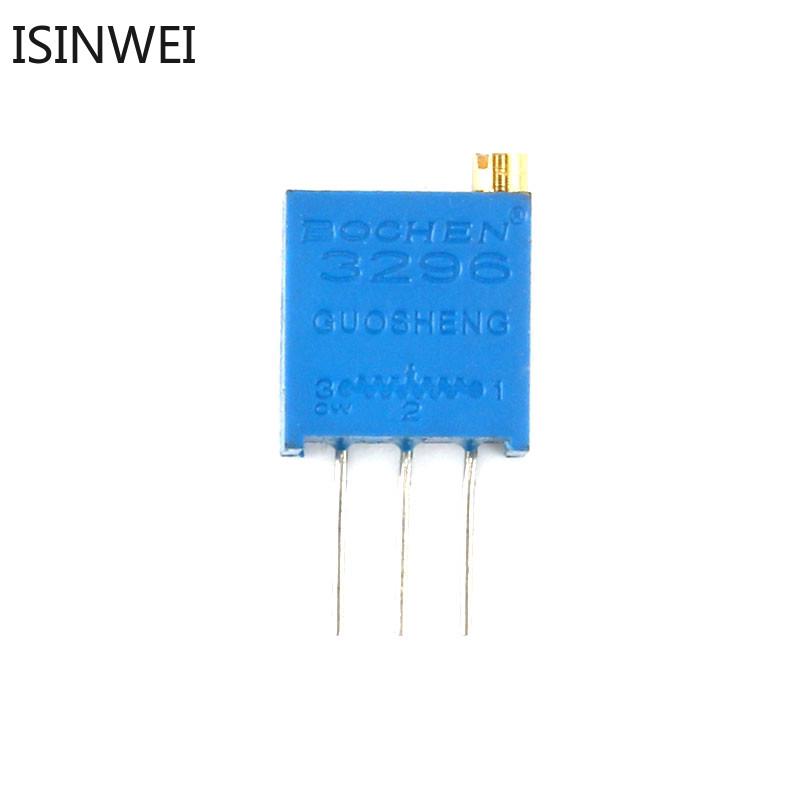

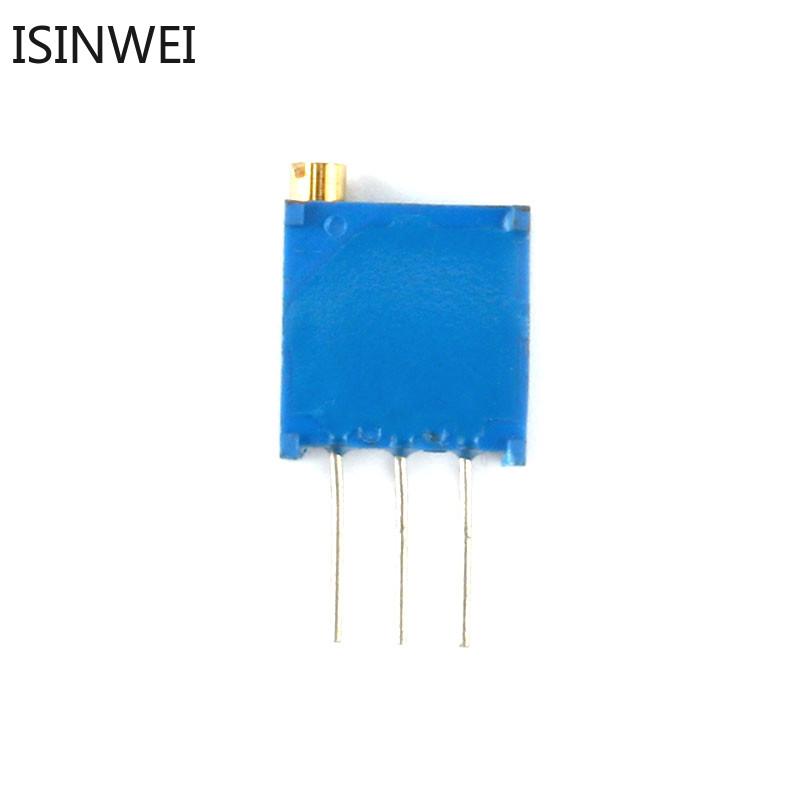

10 ชิ้น 3296 trimmer มิเตอร์ 3296 w ตัวแปรแบบปรับได้ 102 102 102 103 105 201 201 203 501

Electrical Cheracteristics
Standard resistance range: 10Ω~2MΩ
Resistance Tolerance: ±5%, ±10%
Terminal resistoance: ≤1%R or 2Ω
Contact Resistance Variation：≤3%R or 3Ω
Insulation Resistance: R1≥1GΩ
Winthstand Voltage: 101.3KPa 600V 8.5kPa 360V
Effective Electrical Travel: 30±2(cycles)

Envionment Characteristics
Rated Power: 0.5w (70 ℃); 0W (125℃)
Temperature range: -55 ℃~+125℃
Temperature Coefficent: ±250, ±100ppm/℃
Temperature Vibration: △R≤±2%R, △(Uab/Uac)≤±1%
Vibration: 390m/s2, 4000 times △R≤±1%R
Collision: 10~500HZ, 0.75mm or 95m/s2, 6h, △R≤±1%R, △(Uab/Uac)≤±2%
Climate category: △R≤±3%R, R1≥100MΩ
Electrical endurance at 70℃: 0.5W, 1000h, △R≤±3%R
Mechanical endurance: 200(cycles), △R≤±3%R
Steady Damp-heat: △R≤±3%R, R1≥100MΩ


Physical Characteristics
Total Machanical travel: 30±2(cycles)
Staring Torque: ≤36mN.m
Clutch Torque: ≤36mN.m
