✅ New modern look & feel of all machines
✅ Designed to meet the requirements of industrial and HVAC applications
✅ Easier to install and operate with multi-standard screws
✅ With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
✅ Digital customer experience for technical documents

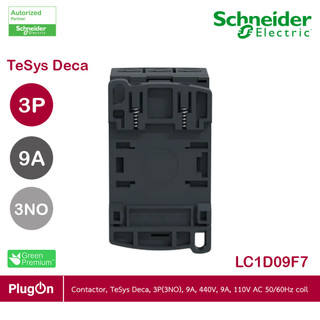

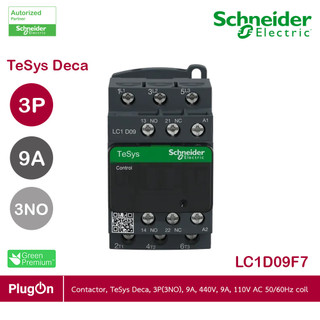

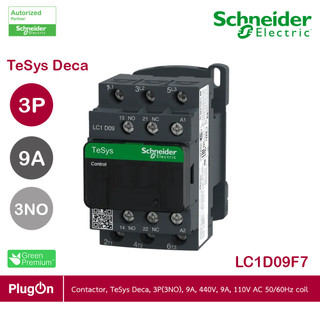

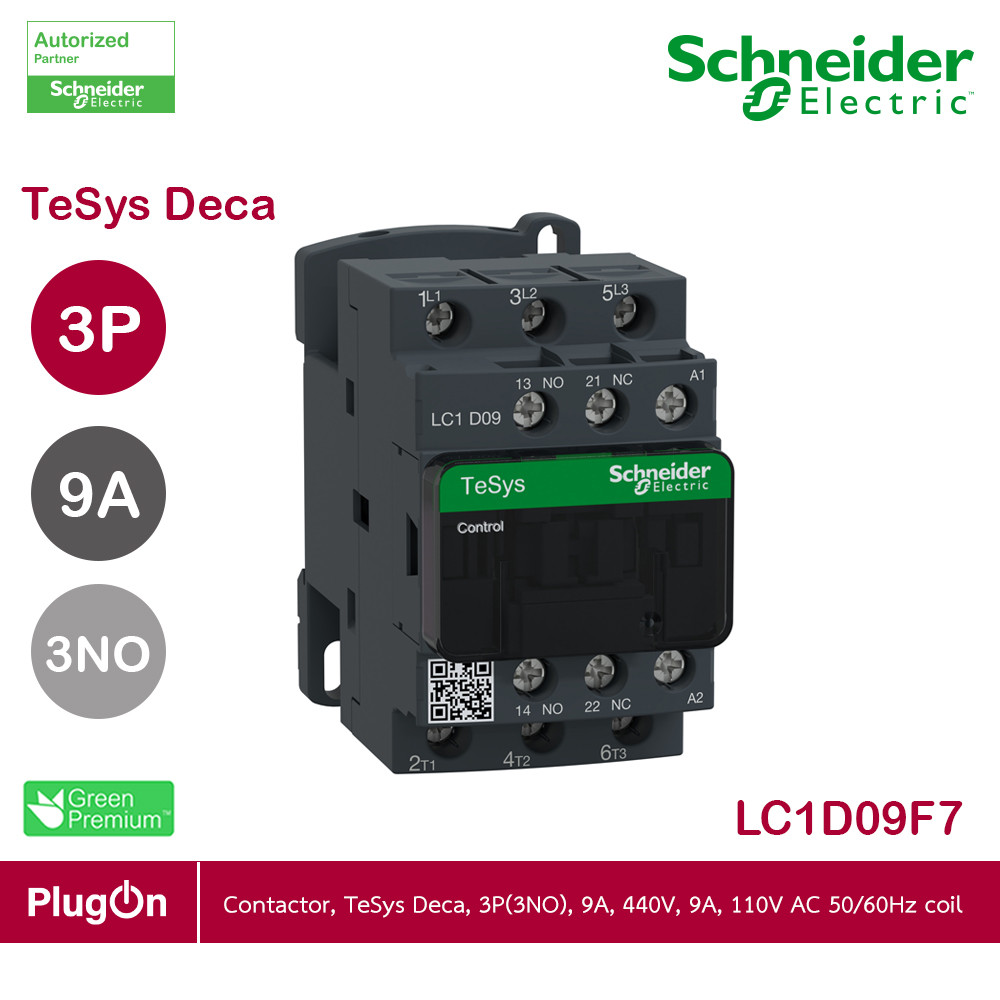

✅ TeSys Deca contactor
✅ 3 poles (3NO)
✅ for motor control applications up to 9A/690V AC-3/3e (4kW@400V).
✅ It provides a 110V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified)
✅ connection by screw clamp terminals.
✅ For operating rates until 3600 cycles/hour and environments until 60°C
✅ it procures high reliability and durability to demanding applications.
✅ Compact (45mm width)
✅ DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine)
✅ Green Premium compliant (RoHS/REACh).
