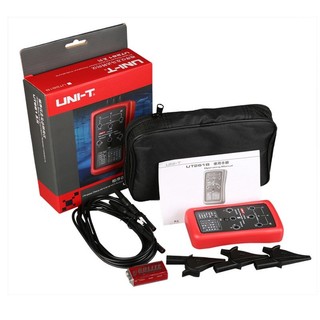

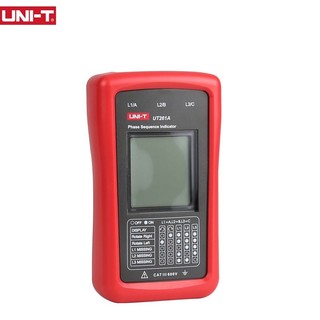

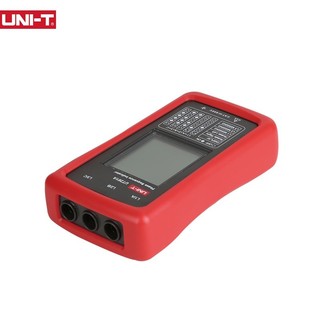

UT261 series is used for determining 3-phase power phase sequence, missing phase indication, and motor phase rotation (UT261B). UT261A and UT261B can measure AC voltage of 40~700V and 90~600V respectively. These devices can operate in frequency range of 15~400Hz. UT261 are durable devices which can withstand impact from 2 meter' s height. Test leads with protective tubing are included in optional accessories.
Technical Data
Specifications Range UT261A UT261B
AC voltage (V) 90V~600V √
40V~690V √
Frequency (Hz) 15Hz~400Hz √ √
Working current (A) ＜1mA <3mA
Features
Phase sequence indication LCD LED
Missing phase indication LCD LED
Motor rotation indication LED
General Characterisitics
Power UT261A: No battery required; UT261B: 9V battery (6F22) (Battery Not Include）
