Solar Cable / DC Cable #4
✅ Sell in Meter, assembly MC4 Connector
✅ LINK Brand

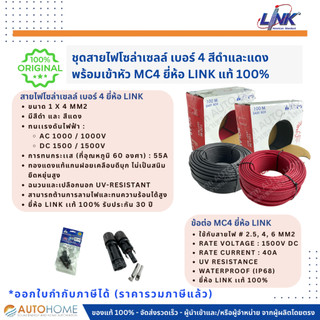

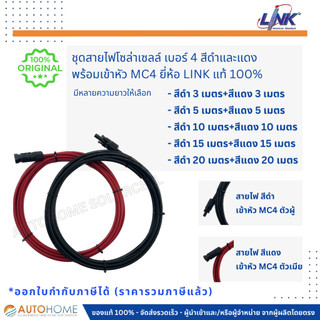

⦿ There are 2 options for MC4 connector termination
➥ 1. Terminate one end of each color wire with an MC4 connector, leave the other end open
- Black wire → Connect to MC4 Male (+)
- Red wire → Connect to MC4 Female (−)
➥ 2. Terminate both ends of each color wire with MC4 connectors
- Black wire → Connect to MC4 Male on one end and MC4 Female on the other end
- Red wire → Connect to MC4 Male on one end and MC4 Female on the other end
⦿You can choose the cable length.
➥ 3 Meter with MC4 (3 meters Black color + 3 meters Red color)
➥ 5 Meter with MC4 (5 meters Black color + 5 meters Red color)
➥ 10 Meter with MC4 (10 meters Black color + 10 meters Red color)
➥ 15 Meter with MC4 (15 meters Black color + 15 meters Red color)
➥ 20 Meter with MC4 (20 meters Black color + 20 meters Red color)
------------------------------------------------------------
Solar Cable / DC Cable #4 Detail
ELECTRICAL CHARACTERISTIC
- Brand : Inter Link
- Nominal Voltage Uo/U : AC 1000/1000V , DC 1500/1500V
- Max. DC Voltage : 1800V (conductor-conductor, non-earth system, circuit not under load)
- AC Test Voltage : 6.5 KV
- DC Test Voltage : 15 KV

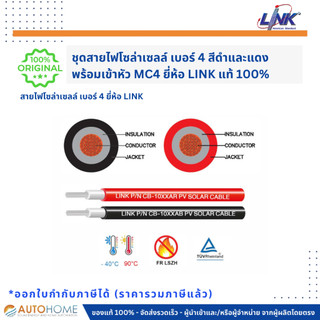

CABLE CONSTRUCTION
- Conductor Material : Fine wire stranded tinned copper according IEC 60228 Class 5
- Insulation Material : Halogen free, Copolymer Electron beam cross-linked polyethylene (XLPE)
- Jacket Material : Halogen free, Copolymer Electron beam cross-linked polyethylene (XLPE) with FR-LSZH
- Jacket Color : Red or Black
TEMPERATURE
- Max. temperature at conductor : -40˚C to +120˚C
- Temperature Range : -40˚C to + 90˚C
TECHINCAL SPECIFICATION
- Size : 4 mm
- Insulation Thickness : 0.7 mm.
- Jacket Thickness : 0.80 mm.
- Jacket Diameter : 5.5 ± 0.3
- Conductor Resistance at 20˚C (Ω/km) : ⩽ 4.85
- Insulation Resistance at 20˚C (MΩ/km) : ⩾ 580
- Rated Current at 60˚C : 55A
STANDARD
- IEN 62930:2017
- EN 50618:2014
- IEC 60228 , Class 5
- DIN VDE 0295 Class 5
- TÜV Approvals
- RoHs compliant
------------------------------------------------------------
MC4 Connector for Solar System
- Brand : Inter Link
- Compatible Cable : 2.5 , 4 and 6 mm2
- Rate Voltage : 1500V DC
- Rate Current : 30A
- UV-resistance
- Waterproof with Protection class IP68
- High voltage carrying capacity
- The connector can be used in the atrocious weather (-40 - 80 C)
- Stable automatic lock-system makes connectors open and close easily
- TUV standard
