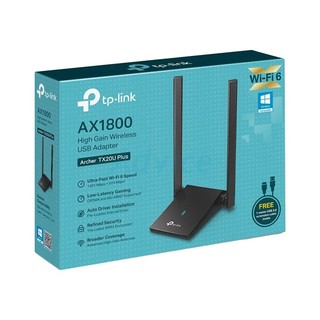

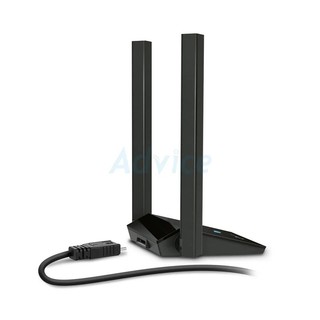

TP-LINK Wireless USB Adapter (Archer TX20U Plus) AX1800 Dual Band Wi-Fi 6 - A0145627

Brand TP-LINK
Model Archer TX20U Plus
Interface USB
Antenna 2× High-Gain Dual-Band Antennas
Standards EEE 802.11a/b/g/n/ac/ax
Frequency 2.4 GHz-5 GHz
Signal Rate
5 GHz:
11ax: Up to 1201 Mbps(dynamic)
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11ax: Up to 574 Mbps(dynamic)
11n: Up to 400 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
Sensitivity
5 GHz:
11ax HE80 MCS0: -90 dBm
11ax HE80 MCS11: -59 dBm
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm
2.4 GHz:
11ax HE40 MCS0: -94 dBm
11ax HE40 MCS11: -66 dBm
11g 54Mbps: -79 dBm
11n HT40 MCS9: -74dBm
Transmit Power
5 GHz: 19dBm(FCC) /16dBm(CE) (EIRP)
2.4 GHz : 19dBm(FCC) / 14.5dBm(CE) (EIRP)
Wireless Modes Infrastructure mode
Wireless Security WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK
Certifications FCC, CE, RoHS
Environment
Operating Temperature: 0?~40? (32? ~104?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
System Requirements Supported operating systems include Windows 10, 11
Dimension (W x D x H) : 15.63 x 19.20 x 8.40 cm
Net Weight 0.00 KG
