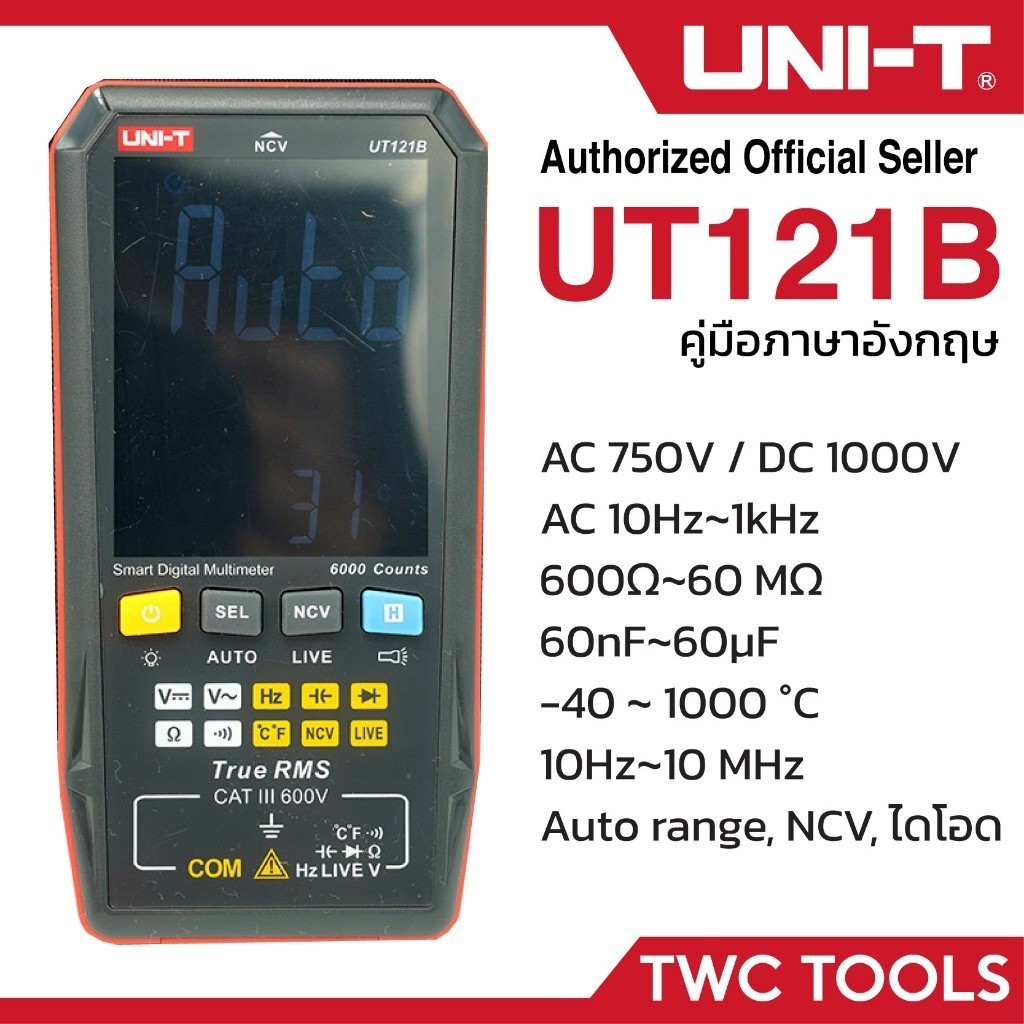

UT121 series feature large-screen & ultra-thin multimeters and auto range and they can display two measurement results at the same time, which is convenient for home and non-professional users. They are convenient and fast electronic tools.
Features of UT121 Series Smart Digital Multimeters
● True RMS
● AC 750V/DC 1000V voltage measurement (UT121B)
● 60MΩ large resistance measurement (UT121B)
● 60mF large capacitance measurement (UT121B)
● Full-scale input protection
● NCV/LIVE measurement
● Large size LCD screen
● 19mm ultra-thin body
● 6000counts
● Intelligent identification gear
Specifications UT121B
AC voltage (V) 6.000V/60.00V/600.0V/750.0V ±(1.5%+3)
AC voltage frequency (Hz) 10Hz-1kHz ±(0.5%+2)
DC voltage (V) 6.000V/60.00V/600.0V/1000.0V ±(1.2%+3)
Resistance (Ω) 600.0Ω/6.000KΩ/60.00KΩ/600.0KΩ/60.00MΩ ±(2%+5)
Capacitance (F) 60.00nF/600.0nF～600.0μF/6000uF～60.0mF ±(10%+5)
Frequency (Hz) 10.00Hz-10.00MHz ±(0.1%+3) ±(0.1%+3)
Temperature(℃/℉) –40℃～1000℃/–40°F～1832°F ±3℃/±6℉
Features
Display count 6199
Dual display √
Auto range √
NCV detection √
LIVE detection √
Diode test √
Continuity buzzer √
LCD high voltage alert √
Flashlight √
Low battery indication √
Auto power off √
Data hold √
Category ratings CATⅢ 600V CATⅢ 600V CATⅢ 600V
Power 2*1.5V AAA
