TP-LINK Router (Archer C6_V4) Wireless AC1200 Dual Band Gigabit - A0146038

Brand TP-LINKModelArcher C6 V4
Standards Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
Antennas4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

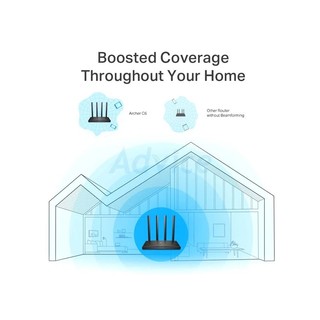

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
Transmit/ReceiveWiFi Transmission Power
CE EIRP:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<30dBm(2.4GHz & 5GHz)
WiFi Reception Sensitivity
5GHz:
11a 6Mbps:-93dBm; 11a 54Mbps:-78dBm
11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm;
11ac HT80 mcs9:-62dBm;
2.4GHz:
11g 54Mbps:-78dBm;
11n HT20 mcs7:-74dBm;
11n HT40 mcs7:-71dbm;
FrequencyAC1200
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 400 Mbps (802.11n)
Range3 Bedroom Houses
Wireless FunctionsDual-Band
Allocate devices to different bands for optimal performance
MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
Safety StandardsWPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)
Processor Specs1.2 GHz CPU
Size of RAMN/A
LEDSYes

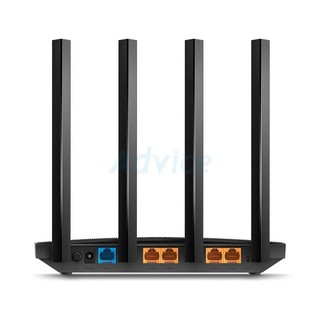

Interface1 x Gigabit WAN Port
4 x Gigabit LAN Ports
USB InterfaceNone
ButtonWPS/Wi-Fi Button
Power On/Off Button
Reset Button
Operation ModeRouter Mode
Access Point Mode
ManagementTether App
Webpage
FirewallSPI Firewall
IPv6 supportYes
FeaturesAccess Control
IP & MAC Binding
Application Layer Gateway
Guest Network
OneMesh™ Supported
Parental Controls
NAT Forwarding
IPTV
System RequirementsInternet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Power Supply12V / 1A
EnvironmentOperating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
CertificationFCC, CE, RoHS

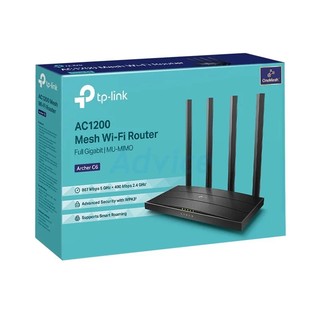

Package ContentsWi-Fi Router Archer C6
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
Dimension(W x D x H) : 21.50 x 11.70 x 3.20 cmNet Weight0.00 KG
