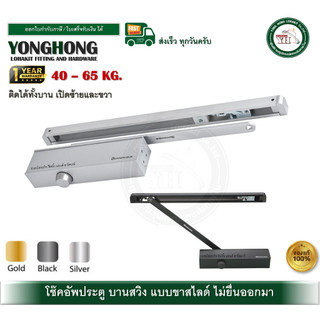

European style designed medium duty closer for commercial doors
Precise cast aluminum body & steel arm,sliding track arm
Adjustable closing & latching speed
Adjustable back check,hold open function optional
Max opening angle 180°
Non-Handed installation
Fixed spring force EN5, Adjustable spring force EN2-EN5
BS EN1154 certification 500,000 life cycles
BS EN1634 certification 2 hours fire rating
weight support 40-65 Kg.
For door maximum wide 950 mm.

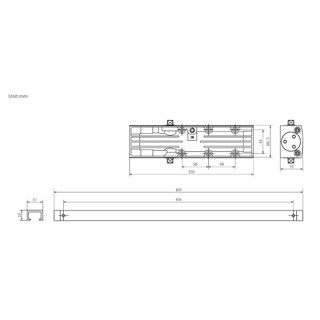

Body size 233x60.5x42 mm.
Mounting Dimension 50x50x45mm.
