Performance Parameter
Working voltage: 5V
Total resistance: 100KΩ
Terminal voltage: -5~5V
Number of taps: 100

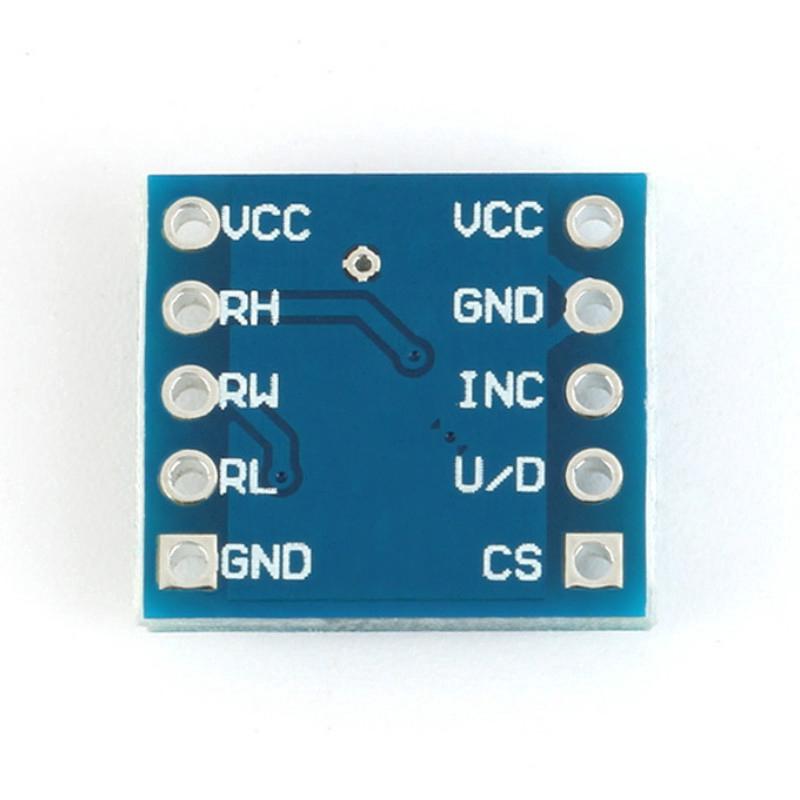

Interface mode: CS, U/D, INC
Resistance increase mode: linear
Working current: 3mA
Package: 8SOIC
Temperature: -40~+85 °C
Tap position is automatically saved when power is off
Functional Description
Temperature compensation function, resistance error between terminals: ±20%
Sliding position data can be saved for a long time, 100 years
Higher resistance resolution: 1%
The changes in the digital potentiometer are stepped or incremental, and the resistance changes linearly.
E.g

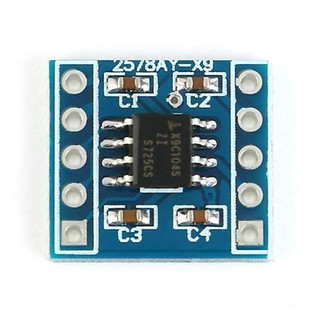

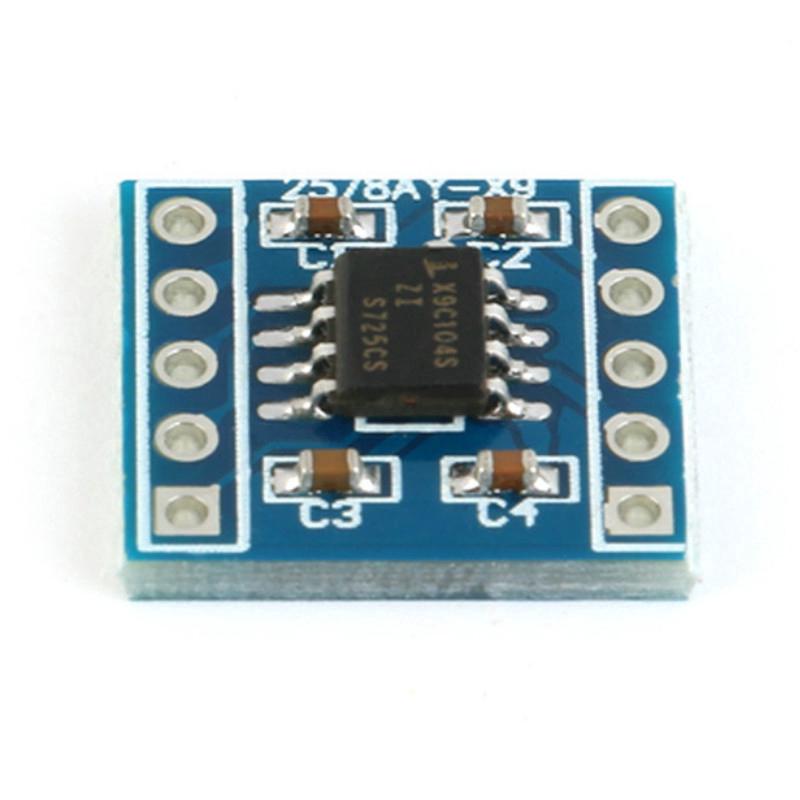

X9C104, with a resistance range of 40R-100K, is divided into 100 steps, and the increment of each tap point is 1010R.
