A hanger bolt is a headless fastener engineered to be driven into wood or another soft substrate. These bolts have machine screw threads on one end and self-tapping threads on the other.
10 pcs. per bag. (sold with washer + wingnut )

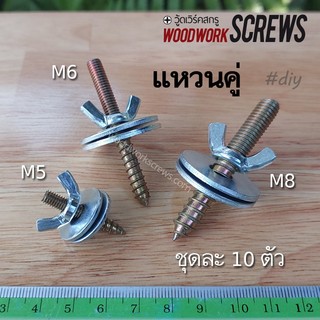

Selection of 4 sizes: Single washer / Double washer

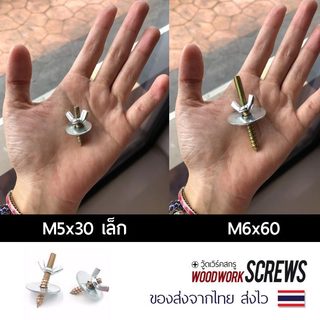

Small M5x40mm + butterfly nut + washer OD20mm
Medium M6x60mm + butterfly nut + washer OD30mm
Large M8x60mm + butterfly nut + washer OD30mm
Extra large M10x60mm + butterfly nut + washer OD28mm
Hanger bolts are ideal for hanging materials from wooden structures, walls, or overhead
Zinc-plated steel offers lasting corrosion resistance and durability
Install by driving the sharp pointed end into a pre-drilled hole
Commonly used in furniture assembly as well as to suspend electrical wiring or sheet metal
Install by driving the sharp pointed end into a pre-drilled hole
How to screw into Wood: Here's how to screw (coarse thread) into wood using this method:
0. Prepare wood, Drill pilot hole smaller than bolt size
1. Prepare two nuts and two open-end wrenches.
2. Screw the first nut onto the fine-threaded end, about 2-3 centimeters in.
3. Screw the second nut clockwise until it meets the first nut.
4. Once the two nuts meet, tighten them against each other by turning them in opposite directions with the wrenches. This will lock them together firmly.
5. Now that the nuts are tightly secured, you've created a "head" on the coarse thread, allowing you to drive it into the wood just like a hex-head bolt.
You can now easily screw the coarse thread into your material.
When you're finished, simply loosen the locked nuts, remove them, and you're done.
