Brand ADVICE

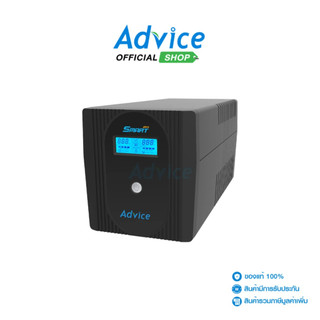

Model Smart Plus
Type Line Interactive UPS with simulated sinewave
Rated Capacity 1200 VA / 720 Watt
Nominal Input Voltage VOLTAGE RANGE : 220 Vac +-35%
Nominal Output Voltage
• AC VOLTAGE REGULATION (Batt.Mode) : 220 Vac +-5%
• FREQUENCY REGULATION : 50Hz +-1%
Input Frequency 50Hz +-10%
Backup Time 15-60 Min. (Depend on load)
Transfer Time Typical 2~4ms, 10ms Max.

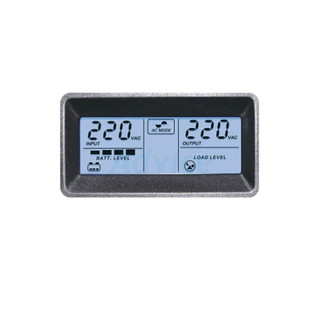

Display
• AC Mode
• Battery Mode
• Load Level
• Battery Level
• Input Voltage
• Output Voltage
• Fault and Battery Low
Input Connections N/A

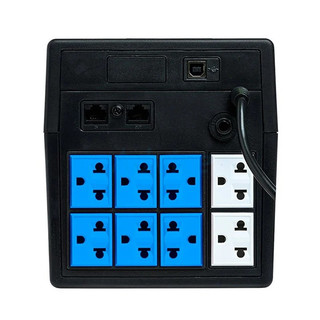

Output Connections 8 Outlet ( 6 Backup + 2 Bypass)
Interface Port
• USB
• RJ45 Modem internet protection
Indicator & Audible Alam/ Protection
• Battery mode
• Low Battery
• Overload
• Battery Replacement Alarm
• Fault
Battery Type Sealed lead acid maintenance free
Waveform Type Simulated sinewave
Typical recharge time 6~8 Hours to 90% after complete discharge
Dimension (W x D x H) : 35.30 x 14.90 x 16.20 cm
Net Weight 8.40 KG
ประกัน 2*2*0
