CAMERA
Image Sensor
• 1/3” Progressive Scan CMOS
Lens
• Fixed focal lens (2.8 mm / 4 mm / 6 mm)
Aperture
• 2.8 mm: F1.6
• 4 mm: F1.6
• 6 mm: F1.6
Lens Mount
• M12
Viewing Angle
• (2.8mm) Horizontal FOV: 102°, Vertical FOV: 55°, Diagonal FOV: 122°
(4mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
(6mm) Horizontal FOV: 50°, vertical FOV: 27°, Diagonal FOV: 59°
Day/Night Mechanism
• IR Cut Filter
IR Working Distance
• 30m
Illumination Distance
• 30 m
Minimum Illumination
• 0 lux with IR/white Light
Weatherproof Rating
• IP66
Digital Noise Reduction
• 3D DNR
WDR
• DWDR
NETWORK
Security
• Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protocol
• TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API
• ONVIF
Simultaneous Live View
• 3 Main Streams & 3 Sub-Streams
GENERAL

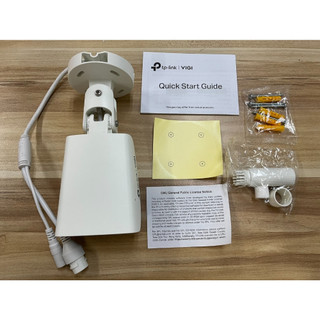

Package Contents
• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
Operating Temperature
• -30–60 °C
Certifications
• CE, RCM, BSMI, VCCI, RoHS, NTRA, KC
Dimensions( H X W X D )
• 78 × 70 × 174 mm
Material
• Plastic
Weight
• 195g
General Features
• Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Supply
• 12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
Power Consumption
• 12V DC: Max 7.5W
PoE: Class 0
VIDEO/IMAGE
Video Compression
• Main stream: H.265+/H.265/H.264+//H.264
• Sub-Stream: H.265/H.264
Frame Rate & Resolutions
• Main Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080
• Sub-Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480, 352x288, 320x240
Video Streaming
• Main Stream
• Sub-Stream
Image Settings
• Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image Enhancement
• BLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit Rate
• Main Stream: 256 Kbps to 4 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps
SMART FEATURE-SET
Smart Event
• Area Intrusion Detection, Line-Crossing Detection, Human Detection
Basic Event
• Motion Detection, Camera Tampering Detection, Exception ( illegal login)
Linkage Method
• Trigger Notification: ONVIF, HTTPS
Region of Interest
• 1 Region
INTERFACES
Network Interface
• 1 RJ45 10/100M Self-Adaptive Ethernet Port
Audio Input
• Built-in Microphone
Audio Output
• Built-in Speaker
Button
• Reset Button
On-board Storage
• Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
