Main
Range : Square D

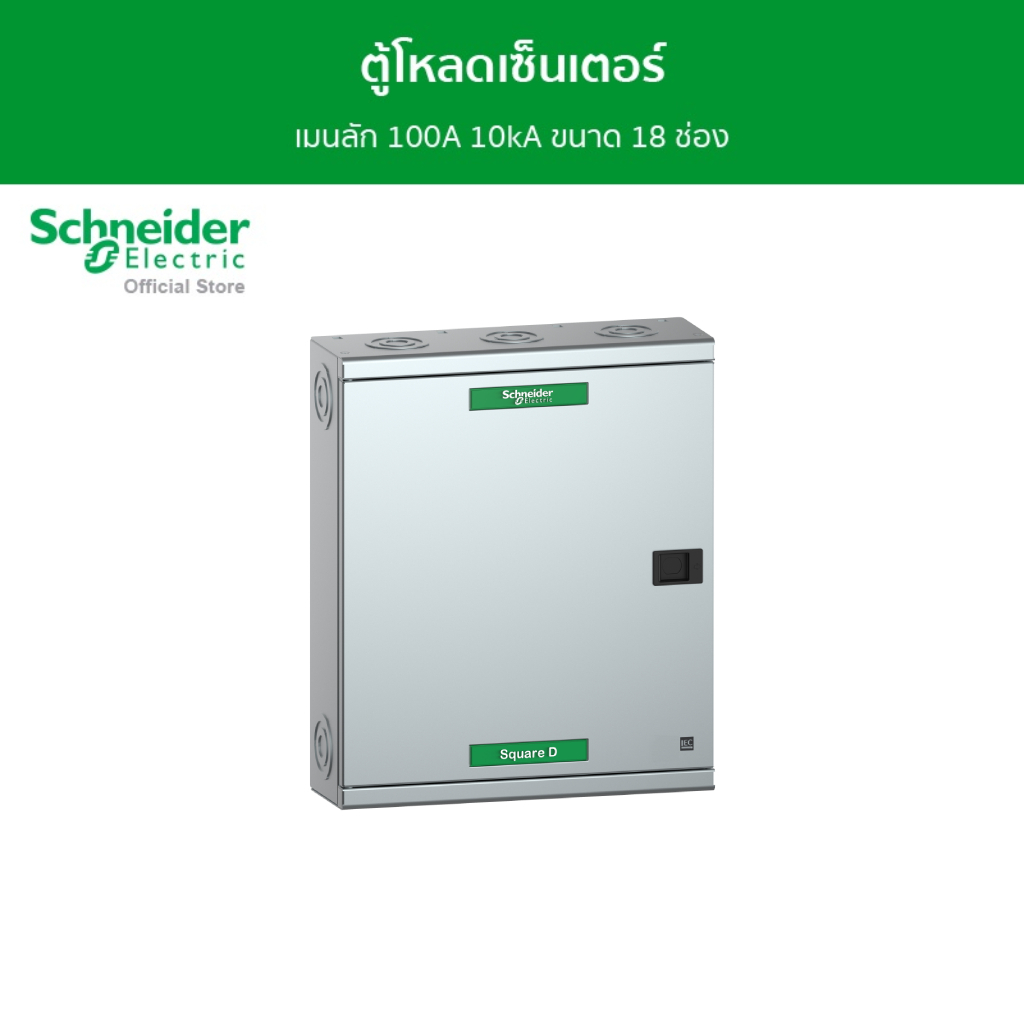

Product name : Classic
Product or component type : Load Center
Device application : Distribution
Provided equipment
earth terminal block
neutral terminal block
blanking plate
plug-on mounting rail
enclosure
removable gland plate with cable knockouts
removable front cover at top and bottom of the enclosure
100 A lug at incoming
Complementary
Load center type : Main lugs
Enclosure mounting : Surface
Number of ways : 18 ways (outgoer)
Electrical connection : Tin plated copper busbar connection
[In] rated current : 100 A
Network number of phases : 3 phases
Wiring configuration : 4-wire
Short-circuit current : 25 kA
Options for protection device type
QO type miniature circuit breaker (MCB) - 1P in outgoer
QO type miniature circuit breaker (MCB) - 3P in outgoer
QO type residual current circuit breaker with overcurrent protection (RCBO) - 1P - 10 mA in outgoer
QO type residual current circuit breaker with overcurrent protection (RCBO) - 1P - 30 mA in outgoer
QO type residual current circuit breaker with overcurrent protection (RCBO) - 2P - 30 mA in outgoer
[Ue] rated operational voltage : 240/415 V AC
Type of front cover : Plain blue grey color with cut-out
Door type : Plain
Door opening side : Right or left
Lock type
Keylock (to be ordered separately)
Sliding knob
Cable entry
3 knock-out at top and bottom
2 knock-out at left side
2 knock-out at right side
Enclosure material : Phosphated cold rolled steel of 1.4 mm thickness
Type of paint : Polyester epoxy powder 50…60 µm
Colour : Blue grey
Height : External: 455 mm
Width : External: 381 mm
Depth : External : 130 mm
Environment
Standards
TIS 1436-2540
IEC 60439
BS 5486-13
IP degree of protection : IP4X
Product certifications : TIS
