Main
Range of product : EasyPact
Product or component type : Circuit breaker

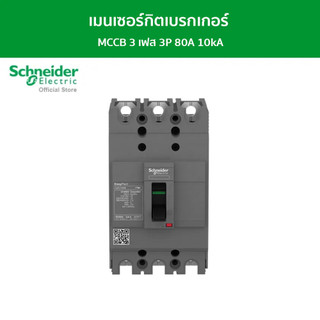

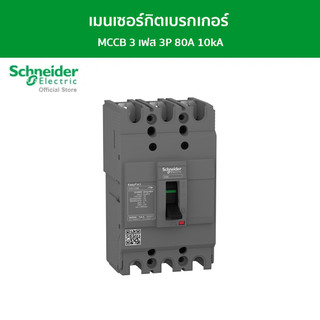

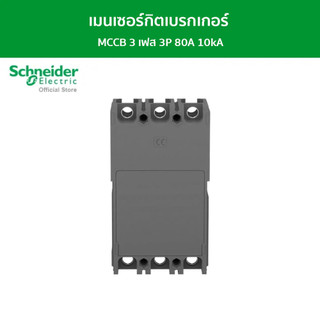

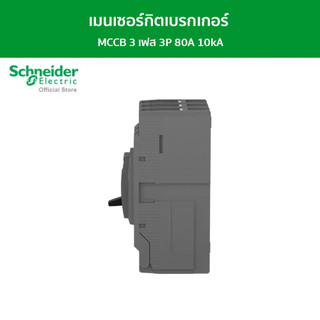

Device short name : Easypact EZC100F
Circuit breaker name : Easypact EZC100F
Device application : Distribution
Poles description : 3P
Protected poles description : 3t
Network type
AC
DC
Network frequency : 50/60 Hz
[In] rated current : 80 A at 40 °C
[Ui] rated insulation voltage : 690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage : 6 kV conforming to IEC 60947-2
[Ue] rated operational voltage
550 V AC 50/60 Hz conforming to IEC 60947-2
250 V DC conforming to IEC 60947-2
Breaking capacity code : F
Breaking capacity
25 kA Icu at 110...130 V AC 50/60 Hz conforming to IEC 60947-2
25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
5 kA Icu at 125 V DC 1P conforming to IEC 60947-2
5 kA Icu at 250 V DC 2P conforming to IEC 60947-2
5 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2
10 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2
10 kA Icu at 400...415 V AC 50/60 Hz conforming to IEC 60947-2
7.5 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service breaking capacity
12.5 kA at 110/130 V AC 50/60 Hz conforming to IEC 60947-2
12.5 kA at 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2
2.5 kA at 125 V DC conforming to IEC 60947-2
2.5 kA at 250 V DC conforming to IEC 60947-2
2.5 kA at 550 V AC 50/60 Hz conforming to IEC 60947-2
5 kA at 380 V AC 50/60 Hz conforming to IEC 60947-2
5 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
3.75 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
Suitability for isolation : Yes conforming to IEC 60947-2
Utilisation category : Category A
Trip unit name : TM-D
Trip unit technology : Thermal-magnetic
Trip unit rating : 80 A at 50 °C
Protection type
Short-circuit protection
Overload protection
Pollution degree
3 conforming to IEC 60664-1
3 conforming to IEC 947-1
Complementary
Control type : Toggle
Mounting mode : Fixed
Mounting support : Backplate
Upside connection : Front
Downside connection : Front
Mechanical durability : 13000 cycles
Electrical durability : Category A: 4000 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2
Connection pitch : 25 mm
Local signalling : Positive contact indication
Neutral protection setting : Without protection
Earth-leakage protection : Without
Height : 130 mm
Width : 75 mm
Depth : 60 mm
Environment
Standards
JIS C8201-2-2
EN/IEC 60947-2
EN/IEC 60947-1
GB/T 14048.2
IP degree of protection : IP20 conforming to IEC 60529
IK degree of protection : IK07 conforming to IEC 62262
Ambient air temperature for operation : -25…70 °C
Ambient air temperature for storage : -35…85 °C
