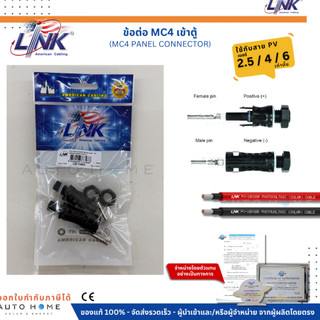

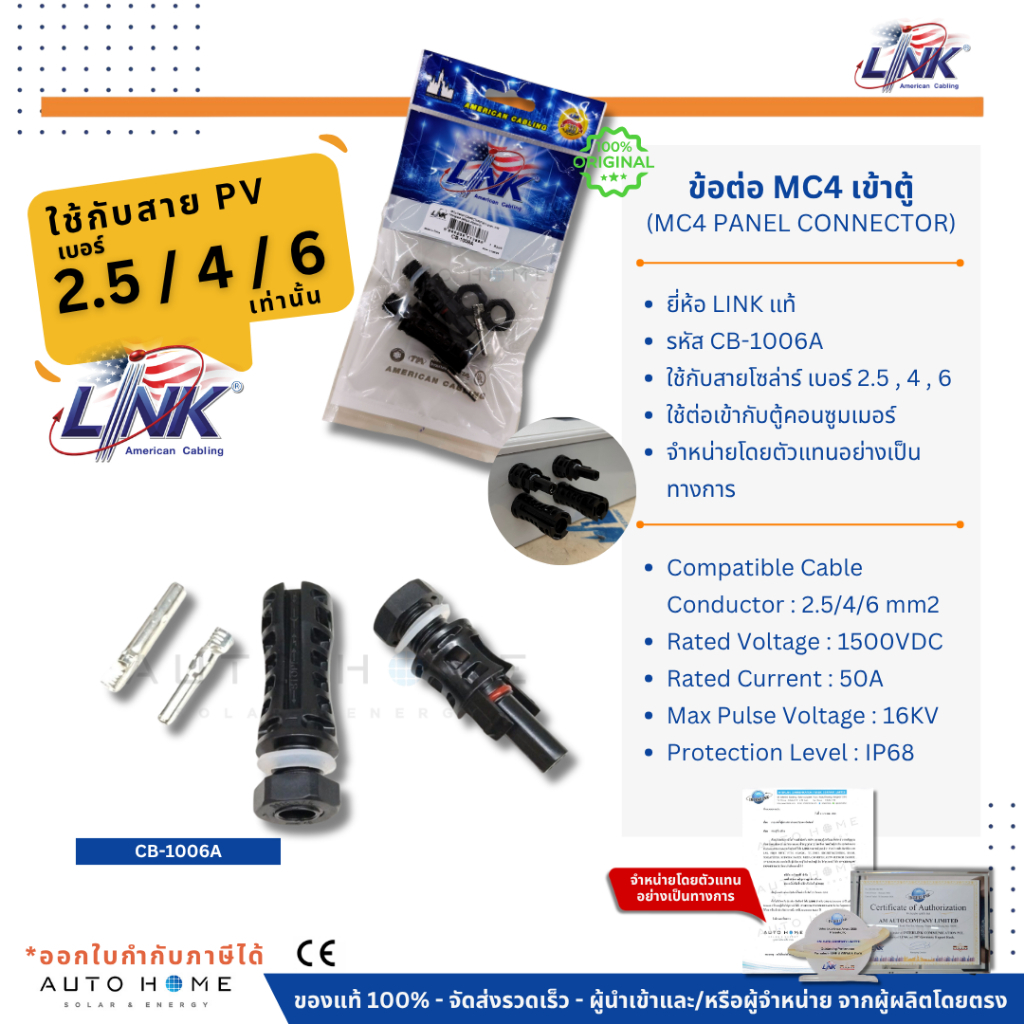

MC4 PANEL CONNECTOR 2.5 - 6.0 mm2, S-Insert Tightly Locking (Pair) 1500 V, TUV Standard
- Brand : Link
- Connector system : Ø 4mm
- Compatible Cable Conductor : 2.5mm2, 4 mm2 and 6 mm2
- Connector Mode : Crimp connector
- Interlock Force : ≥ 80N
- Conductor Material : Copper, Ag plate
- Insulation Material : PC/PPO
- Contact Resistance : ≤ 0.5mΩ
- Rated Voltage : 1500V DC
- Rate Current : 50A
- Max Impulse Voltage : 16KV
- Safety Class : Class II
- Application Class : Class A
- Flame Class : UL94V-0
- Protection Level : IP68
- Temperature Range : -40°C to +110°C
↞ ───────────────── ↠

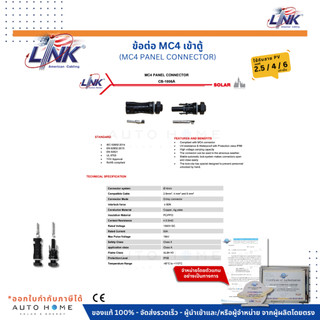

FEATURES AND BENEFITS
Compliant with MC4 connector
UV-resistance & Waterproof with Protection class IP68
High voltage carrying capacity
The connector can be used in the atrocious weather.
Stable automatic lock-system makes connectors open and close easily
The lock-clip has special designed to prevent personnel unlocked by hand.
↞ ───────────────── ↠
STANDARD
IEC 62852:2014
EN 62852:2015
EN 50521
UL 6703
TÜV Approval
RoHS compliant
