รายละเอียดสินค้าจากร้านค้า
โมดูลไร้สาย 1100เมตร สำหรับ Arduino

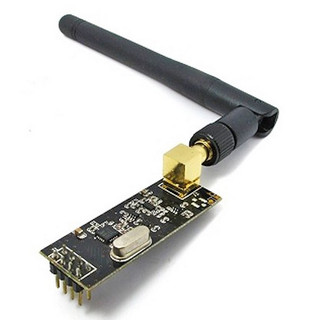

NRF24L01+PA+LNA
Features
Range upto 1100 meters
Based on the popular nRF24L01 from Nordic Semiconductor
Supports 126 RF channels
Works at the 2.4 GHz frequency range
High data rate of upto 1 - 2 Mbps
Programmable output power : 0, -6, -12, or -18dBm
Supports SPI interface, which allows easy interface with microcontrollers
Onboard antenna for optimum performance
Low-power 1.9 ~ 3.6V, only 1uA on Power down mode
Transmision mode current(peak): 115mA
Receiver Mode Current(peak): 45mA
Power-down mode current: 4.2uA
Sensitivity 2Mbps mode in received: -92dBm
Standard DIP type pinout for easy Interface through jumper wires or breadboard
Small size: 16.5mm*45.5mm.
Applications: wireless peripherals, remote control systems such as RC vehicles and consumer remote electronics, wireless voice transmission such as VoIP, wireless sensor networks, wireless networks, home and commercial automation
