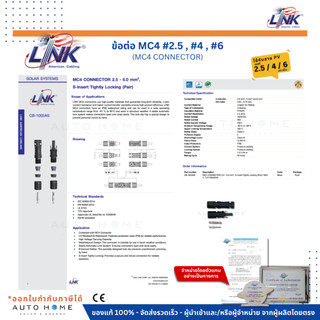

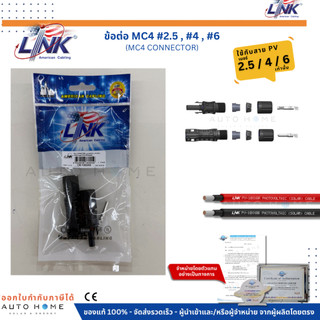

MC4 CONNECTOR 2.5 - 6.0 mm2, S-Insert Tightly Locking (Pair) 1500 V, TUV Standard
- Brand : Link
- Compatible Cable Conductor : 2.5 mm2 / 4 mm2 / 6 mm2
- Compatible Cable OD Cable : 5.00 - 6.70 mm.
- Contact Material : Copper Tin Plating
- Type of Connection : Crimping
- Insulation Material : PPE/PA
- Contact Resistance : ≤ 0.3mΩ
- Rate Voltage : 1500V DC
- Rate Current : 46A
- Rated Impulse Voltage : 16KV
- Ambient Temperature Range : -40°C to +90°C
- Upper Limiting Temperature : 105°C
- Safety Class : Class II
- Pollution Degree : 2
- Overvoltage Level : Class III
- Flame Class : UL94V-0
- Index Protection : IP68
- Contact System : Pressure welding
- Locking System : Pressure welding
- Torque : 1.2-3.0N.m
- Mating Cycle : 50 times
↞ ───────────────── ↠
Application
• Compliant with MC4 Connector
• UV-Resistant & Waterproof: Features protection class IP68 for reliable performance.
• High Voltage Carrying Capacity
• Weatherproof Design: The connector is suitable for use in harsh weather conditions.
• Stable Automatic Lock System: Ensures connectors open and close easily.
• Enhanced Safety: The specially designed lock clip prevents unauthorized unlocking by hand.
• S-Insert Tightly Locking: Provides a secure and robust connection for reliable operation.
↞ ───────────────── ↠
Technical Standards
• IEC 62852:2014
• EN 62852:2015
• UL 6703
• TÜV Approval
• Approvals UL listed file no. E548040
• RoHS compliant
