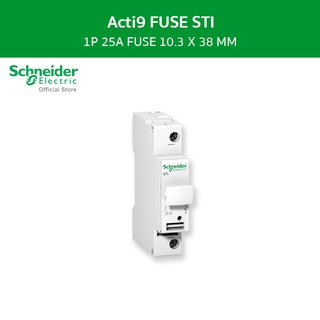

Schneider Electric Acti9 - fuse-disconnector STI - 1 pole - 25 A - for fuse 10.3x38 mm (A9N15636)

STI ฟิวสวิตช์ (Isolatable fuse-Holder)
- ใช้ป้องกัยระบบหรืออุปกรณ์ไฟฟ้าจากกระแสลัดวงจรหรือกระแสเกินพิกัดในงานอุตสาหกรรม
- ทำงานที่ความถี่ 50/60 Hz

Main
Range : Acti9
Product name : Acti9 STI
Product or component type : Fuse-disconnector
Device short name : STI
Poles description : 1P

Complementary
[In] rated current
2 A
4 A
6 A
10 A
16 A
20 A
25 A

Fuse curve
AM
GG

Fuse size : 10.3 x 38 mm
[Ue] rated operational voltage : 500 V AC
[Ui] rated insulation voltage : 500 V AC 50/60 Hz
Mounting mode : Clip-on
Mounting support : DIN rail
9 mm pitches : 2
Height : 81 mm
Width : 18 mm
Depth : 75 mm
Colour : White

Connections - terminals
Screw clamp terminals1 cable(s) 0.75…10 mm² rigid
Screw clamp terminals1 cable(s) 0.5…6 mm² flexible
Screw clamp terminals2 cable(s) 0.75…4 mm² rigid
Screw clamp terminals2 cable(s) 0.5…6 mm² flexible

Wire stripping length : 12 mm
Tightening torque : 2 N.m

Environment
Standards
IEC 60269-1/2
IEC EN 60947-3

IP degree of protection : IP20
Pollution degree : 3
Ambient air temperature for operation : -20…60 °C
Ambient air temperature for storage : -40…80 °C
