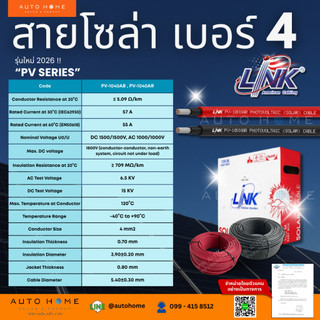

⦿ สายโซล่าเซลล์ เบอร์ 4 มี 2 สีให้เลือก (Solar cable #4 available in 2 Colors)
➥ สีดำ/Black (PV-1040AB-1)
➥ สีแดง/Red (PV-1040AR-1)
- - - - - - - - - -

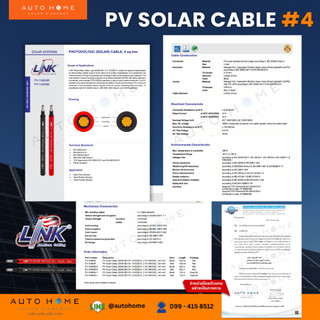

Photovoltaic (Solar) Cable / Solar Cable / DC Cable #4
** This price is per meter**
- - - - - - - - - -
⦿ ELECTRICAL CHARACTERISTIC
➥ Brand : Inter Link
➥ Conductor Resistance at 20°C : ≤ 5.09 Ω/km
➥ Rated Current
- at 30°C (IEC62930) : 57A
- at 60°C (EN50618) : 55A
➥ Nominal Voltage Uo/U : DC 1500/1500V , AC 1000/1000V
➥ Max. DC Voltage : 1800V (conductor-conductor, non-earth system, circuit not under load)
➥ Insulation Resistance at 20°C : ≥ 709 MΩ/km
➥ AC Test Voltage : 6.5 KV
➥ DC Test Voltage : 15 KV
- - - - - - - - - -

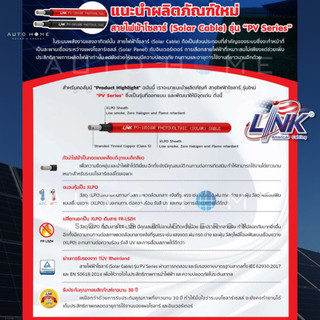

⦿ CABLE CONSTRUCTION
➥ Conductor
- Material : Fine wire stranded tinned copper according IEC 60228 Class 5
- Size : 4mm2
➥ Insulation
- Material : Halogen free, Copolymer Electron beam cross-linked polyolefin (XLPO) according to IEC 62930:2017 & EN 50618:2014
- Thickness : 0.70 mm
- Diameter : 3.90±0.20 mm
- Color : Black
➥ Jacket
- Material : Halogen free, Copolymer Electron beam cross-linked polyolefin (XLPO) with FR-LSZH according to IEC 62930:2017 & EN 50618:2014
- Thickness : 0.80 mm
- Jacket Color : Red or Black
➥ Cable Diameter : 5.40±0.30 mm
- - - - - - - - - -
⦿ ENVIRONMENTAL CHARACTERISTIC
➥ Max. temperature at conductor : 120˚C
➥ Temperature Range : -40˚C to +90˚C
➥ Halogen free : according to IEC 62930:2017, IEC 60754-1, IEC 60754-2, IEC 62821-1 & EN50525-1
➥ Ozone resistance : according to EN 50396 & IEC 60811-403
➥ Weathering/UV resistance : according to IEC62930 Annex E, EN 60811-501 & EN 50289-4-17
➥ Mineral oil immersion : according to IEC 60811-404
➥ Flame characteristics : according to IEC 60332-1-2 & IEC 60332-1-3
➥ Smoke emission : according to IEC 61034-1 & IEC 61034-2
➥ Acid and alkaline resistant : according to IEC 62930 & IEC/EN 60811-404
➥ Damp heat test : according to IEC/EN 60068-2-78
➥ Certified :
- Approval TÜV Rheinland IEC 62930:2017
- Certificate number. R 50635458
- Approval TÜV Rheinland EN 50618:2014
- Certificate number. R 50635463
- - - - - - - - - -
⦿ MECHANICAL CHARACTERISTIC
➥ Min. bending radius : 5 x Cable diameter
➥ Tensile strength and elongation : according to IEC/EN 60811-1-1
➥ Tensile Strength
- Insulation : ≥ 8 N/mm2
- Jacket : ≥ 8 N/mm2
➥ Cold bending : according to IEC/EN 60811-504
➥ Cold elongation : according to IEC/EN 60811-505
➥ Cold impact : according to IEC/EN 60811-506
➥ Hot set test : according to IEC 60811-507
➥ Thermal endurance properties : according to IEC 60216-2
➥ Shrinkage : according to EN 60811-503
- - - - - - - - - -
⦿ TECHNICAL STANDARDS
➥ IEC 62930:2017
➥ EN 50618:2014
➥ IEC 60228 Class 5
➥ DIN VDE 0295 Class 5
➥ TÜV Approvals to IEC 62930:2017 and EN 50618:2014
➥ RoHS compliant
