Feature:
1.The omnidirectional antenna transmits signals in all directions. Both the front and the back can receive signals.
2.The directional antenna is like a bowl-shaped reflective surface behind the antenna. The signal can only be transmitted to the front, and the signal to the back is blocked and reflected by the reflective surface. To the front, the previous signal strength is strengthened. The main radiation range of a directional antenna is like an inverted, less complete cone.
Attention:
This is an panel antenna only. It doesn't work alone.
You need a Signal Booster/Repeater to work with this.
Technical Specfication:
Model No. OS-A104

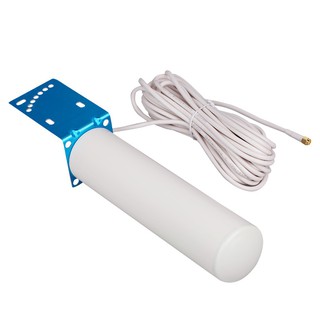

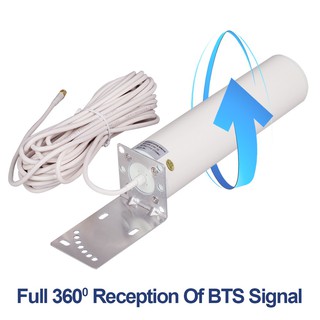

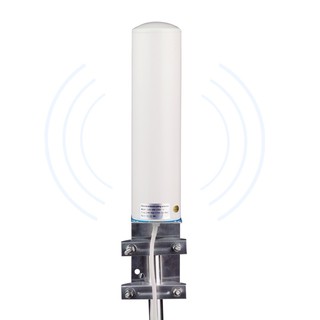

Item Omni-directional Outdoor Antenna
Operating Frequency 698-960MHz/ 1710-2700MHz
Connector Type SMA Male
Gain 10-12dBi
Impedance 50 ohms
Cable Type RG58
Cable Length 10M
Maximum lmput power 10W
VSWR <2.5
Radiation Omni
Demensions about 22*65*65mm
