Main

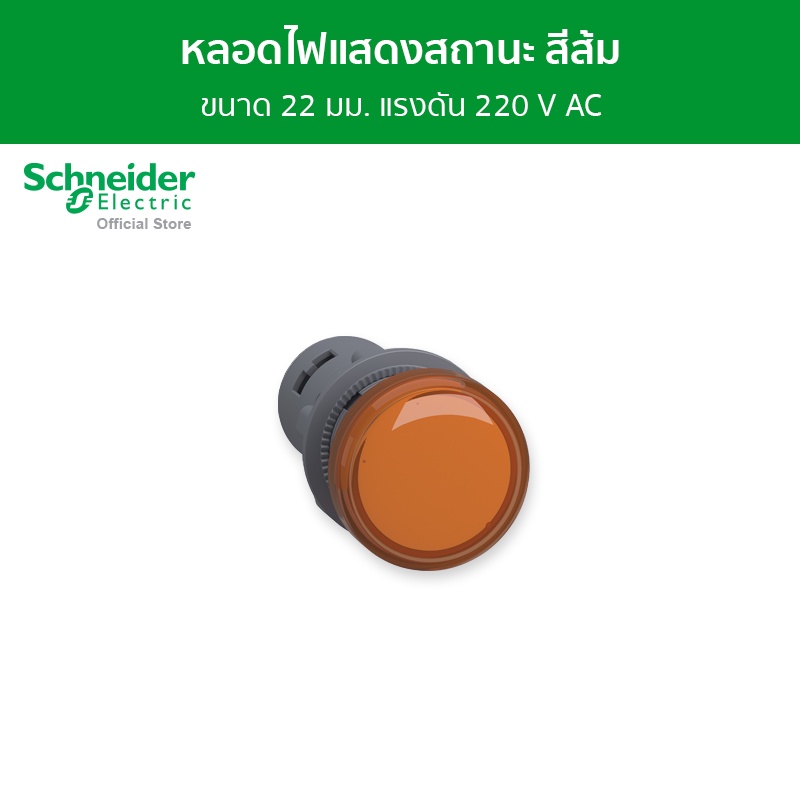

Range of product : Easy Harmony XA2
Product or component type : Monolithic pilot light
Device short name : XA2
Mounting diameter : 22.5 mm
Shape of signaling unit head : Round
Cap/operator or lens colour : Amber
Light source : LED
Bulb base : Integral LED
[Us] rated supply voltage : 220...230 V AC 50/60 Hz
Complementary
Terminals description ISO n°1 : (X1-X2)PL
Device mounting : Fixing hole 22.3 +0.4/0 conforming to IEC 60947-5-1
Fixing center
>= 30 x 40 mm (support panel) metal - thickness: 1…6 mm
>= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm
Connections - terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end conforming to IEC 60947-1
Tightening torque : 0.8…1 N.m conforming to IEC 60947-1
Shape of screw head
Cross compatible with Philips No 2 screwdriver
Slotted compatible with flat Ø 4 mm screwdriver
Slotted compatible with flat Ø 5.5 mm screwdriver
[Ui] rated insulation voltage : 400 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage : 6 kV conforming to IEC 60947-1
Signalling type : Steady
Supply voltage limits : 0.8…1.2 V AC
Current consumption : <= 20 mA
Service life : 40000 h at rated voltage and 25 °C
Height : 29 mm
Width : 29 mm
Depth : 53 mm
Net weight : 0.02 kg
Environment
Ambient air temperature for storage : -40…70 °C
Ambient air temperature for operation : -25…70 °C
Overvoltage category : Class I conforming to IEC 536
IP degree of protection : IP65 conforming to IEC 60529
IK degree of protection : IK05
Vibration resistance : 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6
Shock resistance : 30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
