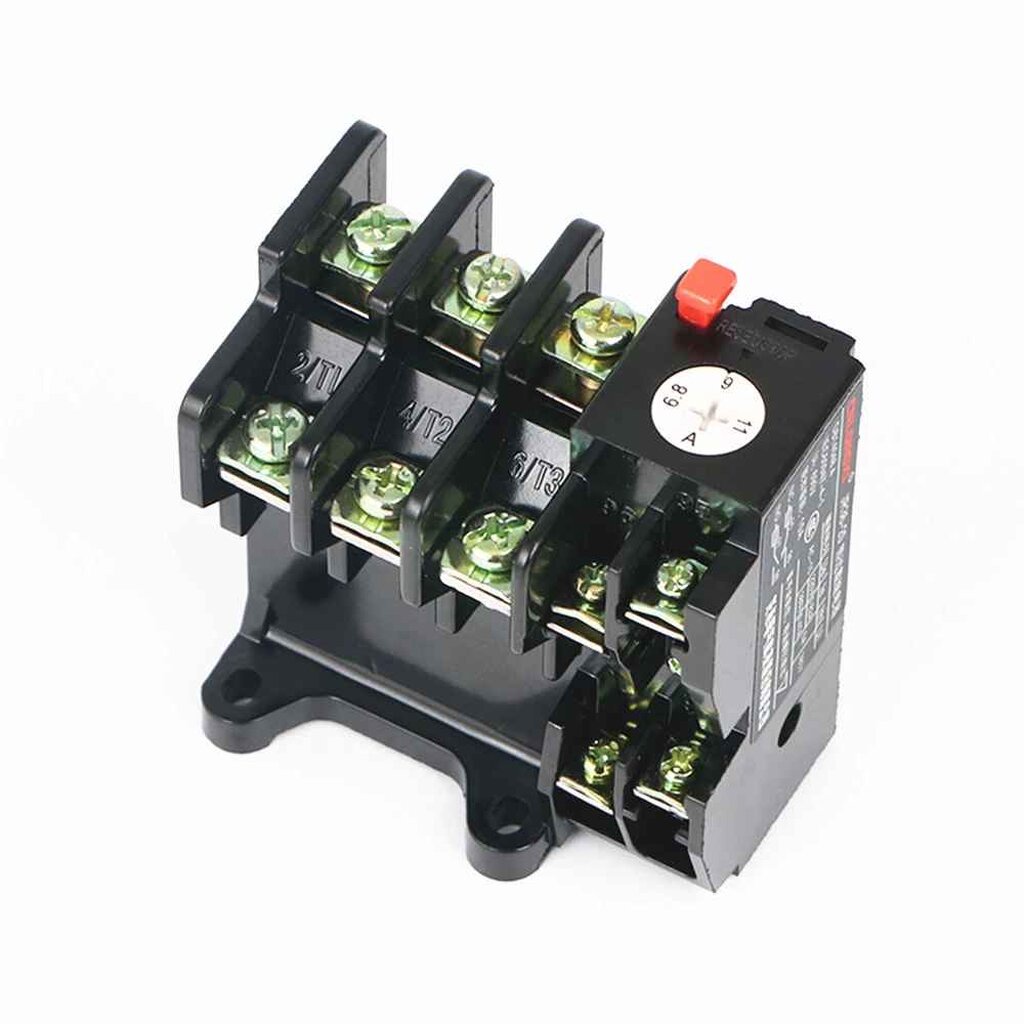

JR36-20 Thermal Overload Relay Motor Starter โอเวอร์โหลด รีเลย์
JR36-20 3 Pole Thermal Overload Relay 1NO 1NC Motor Control Relay
JR36 series thermal relay is suitable for AC 50Hz or 60Hz, the main circuit rated voltage up to 660V, current up to 160A, used as protecting AC three-phase motor against overload, and has the functions of breaking phase protection, temperature compensation. It can automatically and manually reset.
Product Name Thermal Overload Relay
Model JR36-20
Thermal Contact 1 NO(97-98), 1 NC(95-96)
Pole Number 3 Pole
Thermal Relay Rated Current
Adjustable Current Range
97-98
95-96
Ue(AC-15) 380V
Ui (AC-15) 690V
Ith 10A
Material Plastic, Electronic Components
Mounting Thread Size 5.6 x 4.1cm / 0.22" x 0.159" (L*W)
Total Size (Approx) 7.1 x 4.7 x 7.9cm / 2.8" x 1.9" x 3.1" (L*W*H)
