Description:
Module:Buck module（U-IN）＞（U-OUT）
Input voltage（U-IN）：DC 6V~30V
Output voltage（U-OUT）：Silent state 5V (corresponding change after triggering)
Output current：5V/3.4A(MAX) 9V/2.5A(MAX) 12V/2A(MAX)
Overcurrent protection：YES
Voltage protection：Input Overvoltage and Undervoltage protection
Output line compensation：YES
Short circuit protection：YES
Over temperature protection：YES
Conversion efficiency：90%~97%

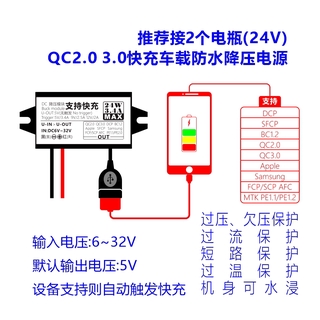

Support trigger mode：DCP SFCP BC1.2 QC2.0 QC3.0 Apple Samsung FCP/SCP MTK PE1.1/PE1.2
Advantage:
1.24W 5V maximum load current 3.4A, maximum input 30V, can connect 2 batteries
The battery of the car is 12V, and the truck has 12V and 24V. New products support it. The maximum output after triggering is 24W.
2. Support multiple fast charging modes,
3. With reverse connection, short circuit, overvoltage, undervoltage, overtemperature

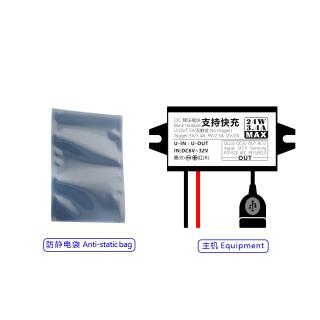

Package Included:
1PCS*DC 12V 24V to QC2.0 3.0 Fast Charging Waterproof Buck Step down Power Supply 24W
