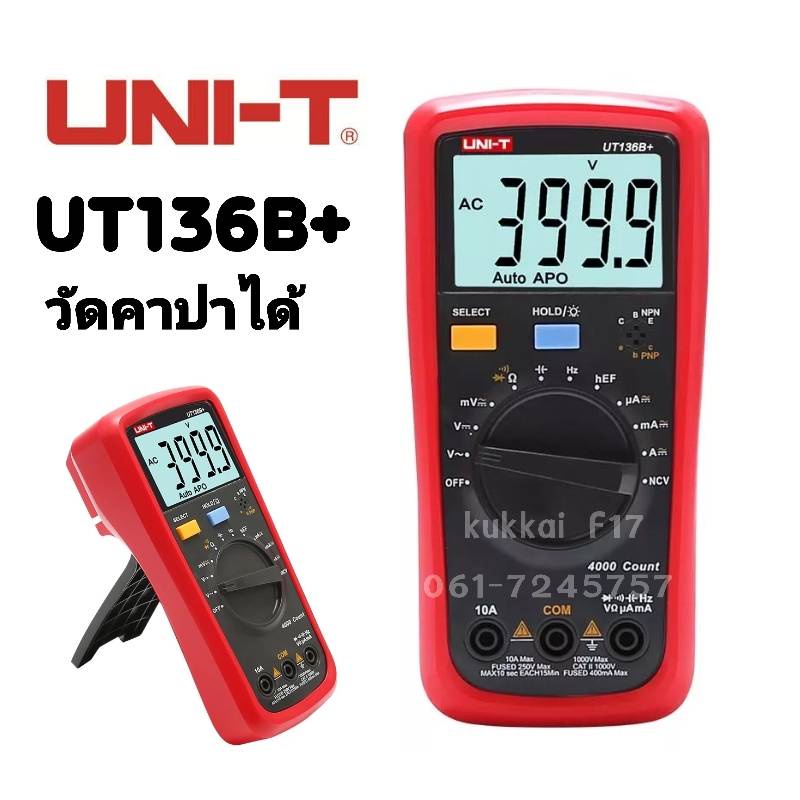

มิเตอร์วัดไฟเเบบดิจิตอล UNI-T UT136B+ วัดคาปาได้ เป็นระบบออโต้ ใช้งานง่าย

Features:

Max. display value: 3999.

Large LCD display with backlight for clear reading.

Can measure DC/AC voltage/current, diode, triode, resistance, frequency, capacitance, and continuity test, etc.

Includes NCV testing, data hold, and auto power off function.

With overload protection on all ranges.

Low battery indication and warning alarm function.

Equipped with a back bracket for supporting multimeter, and also can collect test probe for your convenience.

Protected by rubber for drop protection.

Great for trouble automotive and household electrical problems.

Specifications:

Brand Name: UNI-T

Color: Grey + Red

Material: ABS Maximum

Display: 3999 Range

Control: Auto

DC Voltage: 400mV/4V/40V/400V/1000V

AC Voltage: 400mV/4V/40V/400V/1000V

DC Current: 400μA/4mA/40mA/400mA/4A/10A

AC Current: 400μA/4mA/40mA/400mA/4A/10A

Resistance: 400Ω/4000Ω/40kΩ/400kΩ/4MΩ/40MΩ

Capacitance: 4nF/40nF/400nF/4μF/40μF/400μF/4mF/40mF

Frequency: 400Hz-40MHz

Diode Test: Yes Continuity

Buzzer: Yes

Transistor hFE Test: Yes

Auto Power Off: about 15mins

Safety Level: CAT Ⅱ 1000V/CAT Ⅲ 600V

Power Supply: 2 * 1.5V AA Batteries (NOT Included)

Operating Temperature: 0~40°C(32~104°F) Storage

Temperature: -10~50°C(14~122°F)

Item Size: Approx. 17.5 * 8.3 * 5.3cm / 6.89 * 3.27 * 2.09in (L * W * H)

Item Weight: Approx. 286g / 10.09oz(Without Battery)

Package Size: Approx. 22.2 * 11 * 6.3cm / 8.74 * 4.33 * 2.48in (L * W * H)

Package Weight: Approx. 403g / 14.22oz
