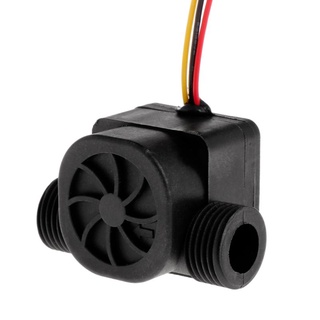

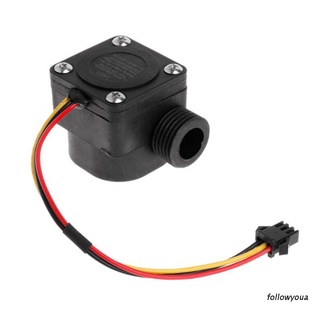

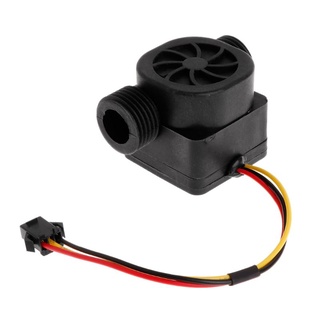

G1/2" 1-30L/min DC5V Water Flow Sensor Flowmeter Hall Flow Sensor Switch Arduino
G1/2 1-30L/min DC5V Water Flow Sensor Flowmeter Hall Flow Sensor Water Control 1.75MPa Counter Switch For Arduino
100% brand new and high quality
Features:
This is a small zise product that easy to install.
Made of good material, the product is precise and durable, no power consumption.
Suitable for gas water heater, electric water heater, washer, wall-hanging stove, electromagnetic water heater,
intelligent IC water meter,cooling system, circulatory system, heating equipment,etc.
Three lines: red is positive, black is negative, yellow is pulse signal.
Specification:
Test range: 1~30L/min(m3/h)
Instantaneous flow pulse characteristics:F=[10Q]±10％, F means instantaneous pulse value(Hz),Q means instant flow
Max. Working current: 15mA
Insulativity: insulation resistance＞100M Ohm
Electric strength: AC 500V, 50Hz
Use voltage: DC 5V
Fit media: water
Working pressure: 1.75MPa
Protection grade: high
linearity: 0.01(%F.S.)
Output signal: moder
Hysteresis: 0.01(%F.S.)
Material: mixtures
Mechanical properties: magnetic material

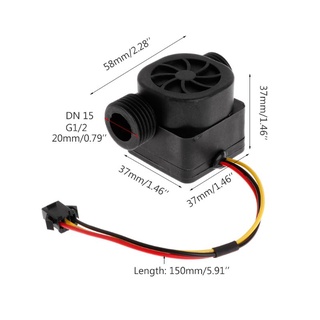

Dimensions: 37x58x37mm/1.46x2.28x1.46inch
Connenctor outer diameter: G1/2"
Color: Black
Quantity: 1 Pc
Package includes:
1 x Water Flow Sensor Flowmeter
