12V / 20A
สำหรับรถยนต์ มอเตอร์ไซค์ ทั่วไป
มีไฟ LED ในตัว
สวิตซ์มี 3 ขา

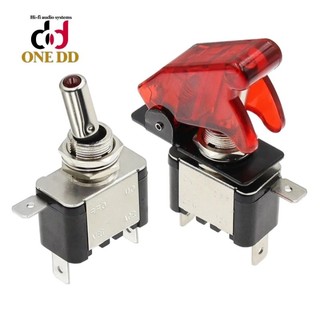

Item Name: On-Off SPST Toggle Switch
Toggle Switch LED Tip Color(Optional): Red / Green / Blue / Yellow / White
Voltage: DC 12V 20A
Contact Resistance(Max.): 50MΩ
Insulation Resistance: Min. 500VDC 100MΩ
Withstand Voltage: 1500VAC/Minute
Operating Temperature: -25°C ~ + 85°C
Mounting Hole Diameter: 1.2cm/0.47" (Approx.)

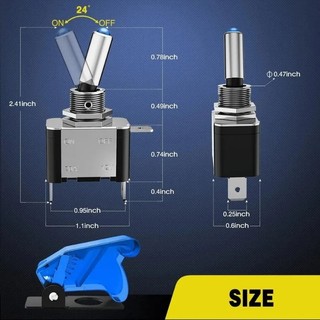

Dimension: 3.8cm x 1.5cm x 6.5cm/1.50" x 0.59" x 2.56" (Approx.)
Notes:
Due to the light and screen setting difference, the items color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.
